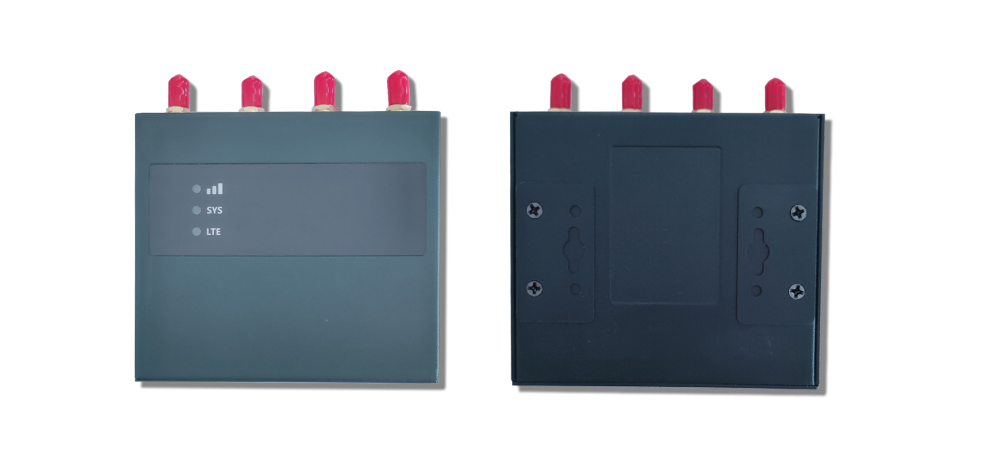

4G LTE WiFi Router, 5G/4G/3G/PPPoE Internet, Bridge/Router/Station/Repeater Mode
CPU/Memory
CPU: MT7628NN
RAM: 128M
ROM: 8M
4G
Standard: WCDMA R7, LTE R9
Compatibility: 4G / 3G / 2G
4G rate: 150Mbps / 50Mbps
Frequency(optional):
CN - TDD LTE: B34/B38/B39/B40/B41, FDD LTE: B1/B3/B5/B8, WCDMA: B1/B5/B8
AU - TDD LTE: B38/B40/B41, FDD LTE: B1/B3/B5/B7/B8/B20/B28, WCDMA: B1/B5/B8
NA - TDD: LTE B38/B40/B41, FDD LTE: B1/B2/B3/B4/B5/B7/B8/B28/B12*/B17*/B66*,
WCDMA: B1/B2/B4/B5/B8
WLAN
Standard: IEEE 802.11 b/g/n
Frequency: 2.4 Ghz
Radio mode: MiMo 2x2
Transmit Power: 17±2dBm
Data rate: 300Mbps
Sensitivity: 11n : -70dBm@10% PER, 11g : -72dBm@10% PER, 11b: -88dBm@8% PER
Antenna
4G: External 5dBi 4G antenna x2
WiFi: External 5dBi 2.4 Ghz antenna x2
Interfaces
Wire: 1 x 10/100M WAN/LAN, 1 x 10/100M LAN
Card slot: 2 x SIM Card Socket
LED: 1 x LAN, 1 x WAN/LAN, 1 x WLAN, 1 x LTE, 1 x System
Other: Reset Button x 1, 8 pin 3.5/3.81mm 8mm connector (PWR pin x 2, RS485 pin x 3, GPIO pin x 3)
Hunan Sanyi Technology Co., Ltd. located at Changsha, China. Professional in R&D and producing network devices, specially for processing OEM/ODM. Products include openWRT WiFi router, 4G/5G router, Mesh
Router, WiFi 6 Router, Industrial&Enterprise Router, Vehicles Router, AP, Outdoor CPE and LTE CPE. Sayi is also a Wi-Fi coverage service provider, provides the solution for hotel, school, hospital, enterprise, airport and vehicle field. We have built a long term cooperation with Mediatek, Broadcom and Qualcomm, capably offering good quality products and fast after-sale service to our clients. Our main customers are China Mobile, Vivacom in
Bulgaria, Sprint, T-Mobile, AT&T in USA and Smart in Philippine.
Sanyi warmly welcome everybody joining in and build win-win cooperation.
Can you printing Customer logo on products?
Yes, we can printing your logo on products.
Do you provide PCBA board order only?
Of course, as a OEM/ODM manufacturer, we can provide PCBA in a short time with good quality.
Can you desin products as per customer's requirements?
Yes, of course. We have our own R&D department, we have ability to design and produce at same time.
How do you ship the goods and how long does it take to arrive?
A. It usually takes 5-7 days to arrive. Airline and sea shipping is also optional.
How to proceed with an order?
A. Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our
suggestions.Thirdly customer confirms the samples and places a deposit for formal order. Fourthly We arrange the production.
